Solid Block Making Machine

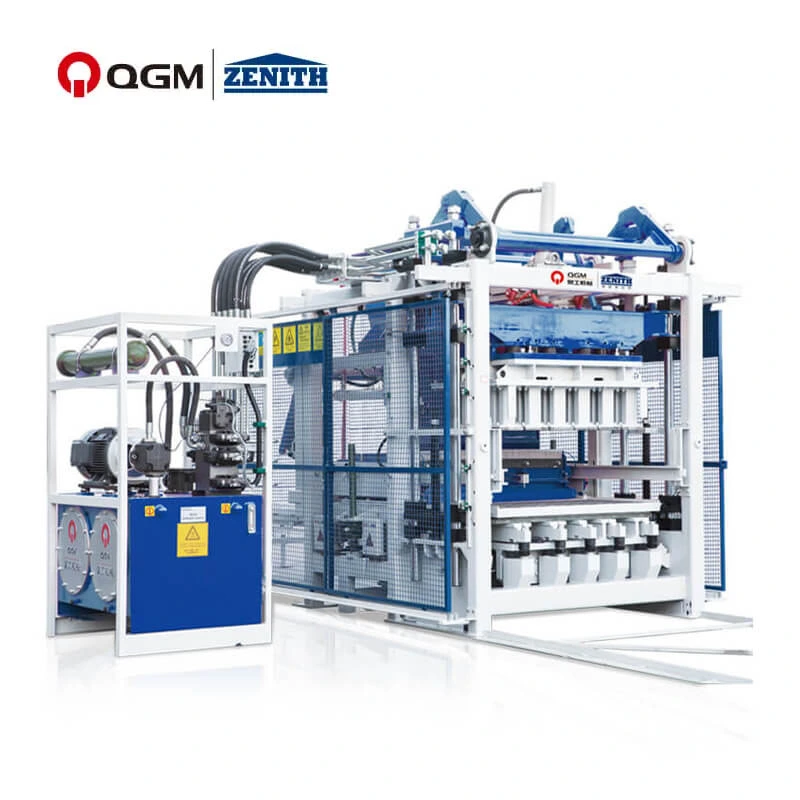

Solid Block Making Machine is a brick making machine specially used for producing new wall material blocks. It adopts hydraulic forming mode and sometimes vibration forming technology. The main features of this forming machine include no noise, high output, high density, no need for pallet maintenance, and short maintenance cycle. It uses fly ash, river sand, gravel and other materials, adds a small amount of cement, and produces solid blocks of new wall materials. The design of the solid block making machine takes into account the needs of energy saving and efficient production. Its products have multiple uses and can be used for wall masonry, etc. Solid Block Making Machine is a multi-purpose machine. It can produce more than 10 different specifications of unburned bricks such as hollow blocks, porous bricks, standard bricks, etc. by replacing the mold. Pneumatic transmission is used to control the continuous completion of unloading, forming, and exporting. It is safe and stable to operate and easy to maintain.

Product Video

Main Technology Features

1.Frequency conversional technology & control
Reduce the motor starting current and soft start function control, prolong the life of the motor. Main vibration adopt low frequency standby, high frequency operation, improve the speed of operation and product quality. Reduce mechanical accessory and motor damage, prolong the life of the motor and mechanical.The frequency conveter saving about 20%-40% power than the traditional conveter.

2.Germany Siemens PLC control system, Siemens touchscreen, Germany
Easy operation,low failure ratio, machine running stability and high reliability.Use the most-advanced industrial internet technology, realize remote trouble-shooting & maintenance. PLC and touchscreen use the PROFINET internet together, convenient for system diagnosis and WEB expansion. Achieve problem diagnosis and alarm system constantly, convenient for machine maintenance and troubleshooting. PLC running data for permanent preservation.
3.Vibration System
Vibration table consists with dynamic table and static table. When vibration begin,dynamic table vibrate,static table remain static.The structure is designed to ensure the amplitude of the vibration table, so as to ensure the high quality of concrete products. Vibration table using HARDOX steel. Vibration mode: using the vibration table vibration + top mould vibration; vibration motor installation vibration damping device and air cooling device.

4.Feeding System
Motor use SEW motors, which control two mixing shafts. Feeding frame, bottom plate and mixing blade are made of high-duty HARDOX steel, the location of bottom plate can be adjusted.Feeding system have sealing device to prevent leakage. The door of the discharging gate is controlled by the SEW motor.

Hydraulic Station
Hydraulic pumps and hydraulic valves adopt international brands. Tube uses “Flange Connection”, convenient installation and maintenance. Multi-point pressure detection point, convenient detection. Digital temperature and blockage alarm function. Motor and pump connection, flange connection, good coaxial. Dynamic proportional valve and constant power pump, speed regulation, voltage regulation, energy saving.

Technical Data

Production Capacity

Block Type	Output	ZN900C Block Making Machine
240*115*53mm	Number of formed blocks(block/ mould)	50
	Cubic meter/ hour (m3/ hour)	13-18
	Cubic meter/ day (m3/ 8 hours)	1005-140
	Number of brick (blocks/ m3)	683
390*190*190mm	Number of formed blocks(block/ mould)	9
	Cubic meter/ hour (m3/ hour)	22.8-30.4
	Cubic meter/ day (m3/ 8 hours)	182.5-243.3
	Number of brick (blocks/ m3)	71
400*400*80mm	Number of formed blocks (block/ mould)	3
	Cubic meter/ hour (m3/ hour)	69.1-86.4
	Cubic meter/ day (m3/ 8 hours)	553-691.2
	Number of brick (blocks/ m3)	432-540
245*185*75mm	Number of formed blocks (block/ mould)	15
	Cubic meter/ hour (m3/ hour)	97.5-121.5
	Cubic meter/ day (m3/ 8 hours)	777.6-972
	Number of brick (blocks/m3)	2160-2700
250*250*60mm	Number of formed blocks(block/ mould)	8
	Cubic meter/ hour (m3/ hour)	72-90
	Cubic meter/ day (m3/ 8 hours)	576-720
	Number of brick (blocks/ m3)	1152-1440
225*112.5*60	Number of formed blocks(block/ mould)	25
	Cubic meter/ hour(m3/ hour)	91.1-113.9
	Cubic meter/ day(m3/ 8 hours)	728.9-911.2
	Number of brick (blocks/ m3)	3600-4500
200*100*60	Number of formed blocks(block/ mould)	36
	Cubic meter/ hour(m3/ hour)	103.7-129.6
	Cubic meter/ day(m3/ 8 hours)	829.4-1036.8
	Number of brick(blocks/ m3)	5184-6480
200*200*60	Number of formed blocks(block/ mould)	4
	Cubic meter/ hour (m3/ hour)	72-90
	Cubic meter/ day (m3/ 8 hours)	576-720
	Number of brick(blocks/ m3)	576-720
