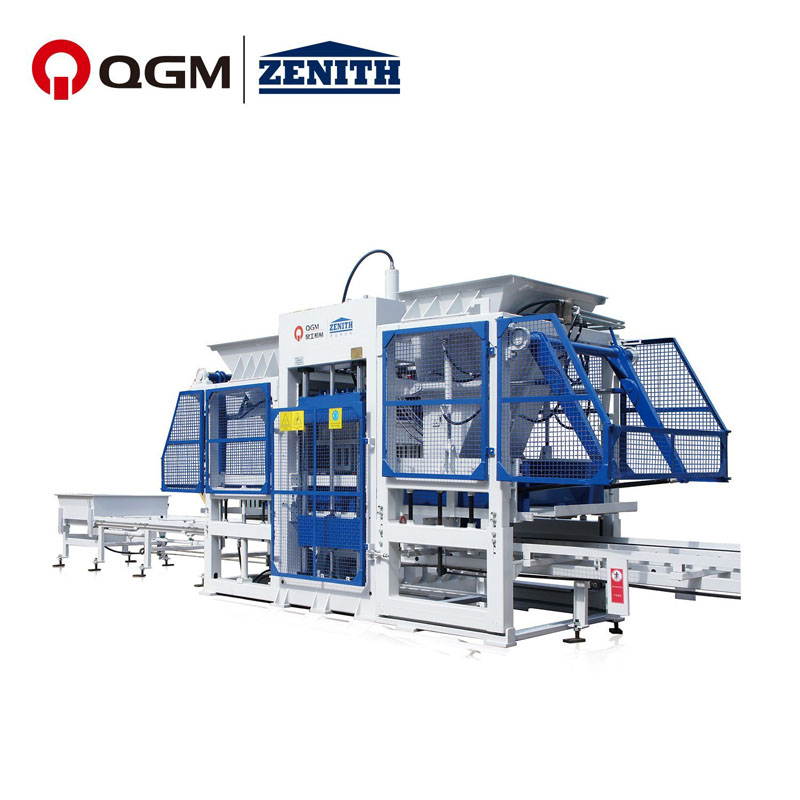

Concrete Block Molding Machine

Concrete Block Molding Machine is a brick-making equipment specializing in the production of concrete products. The main raw materials for the production of Concrete Block Molding Machine products include fly ash, river sand, gravel, stone powder, waste ceramsite slag, smelting slag, etc., and a small amount of cement is added. After these materials are accurately proportioned and mixed, they are formed into blocks with high strength and high density through the pressure or vibration of the block molding machine. Concrete Block Molding Machine selects different models of Concrete Block Molding Machine according to different production sizes. According to the scale of investment, you can choose simple type, optimized type, selected type, semi-automatic configuration, fully automatic configuration and other block molding machine brick production lines. To meet various production needs. This equipment is made of high-strength steel and special welding technology, with extremely strong body and excellent torsion and wear resistance. Its key components such as guide columns are made of super-strong special steel, with hard chrome plating on the surface, and have good torsion and wear resistance.

Product Video

Main Technology Features

ZN series products feature high cost performance, adopting German concrete block making equipment manufacturing technology and are more focused on the overall performance, efficiency and product quality.

ZN series products are designed strictly in accordance with Germany production technology. These machines are produced in Fujian, featuring more stable operating performance, higher block making efficiency and lower fault rate and having outstanding advantages in performance, efficiency, energy-saving, environmental protection and so on.

1)High-efficiency vibration: equipped with advanced German vibration technology, the vibration table is composed of a dynamic table and static table. By operating continuously, there is no need for frequent start-up, which can effectively and evenly transform vibration force and better control the product. The forming time of the product is ultimately shorter and the density is higher.

2)Compulsory feeding: the mixing shaft is controlled by Germany SEW feeding motor, and the feedbox, base board and agitator blade adopt high strength HARDOX steel, providing outstanding sealing performance. Through the compound feeding method of compulsory mixing and reciprocating oscillation, the feeding is more uniform and the product quality is greatly improved.

3)Frequency conversion control: adopting German frequency conversion control technology, the vibration of the block machine adopts low frequency standby and high frequency operating, improving operating speed and product quality. It can reduce the compact on mechanical parts and motor and prolong the life span of machinery, saving power by 20%-30% compared to operation and control of traditional motors.

4)Full-automatic control: advanced German automatic control technology and visual operation of intelligent interactive system achieves man-machine dialogue, making it easier to operate the machine. And it saves labor cost to the optimal extent, with low fault rate and stable operation. It also has functions of product formula management and collecting operating data.

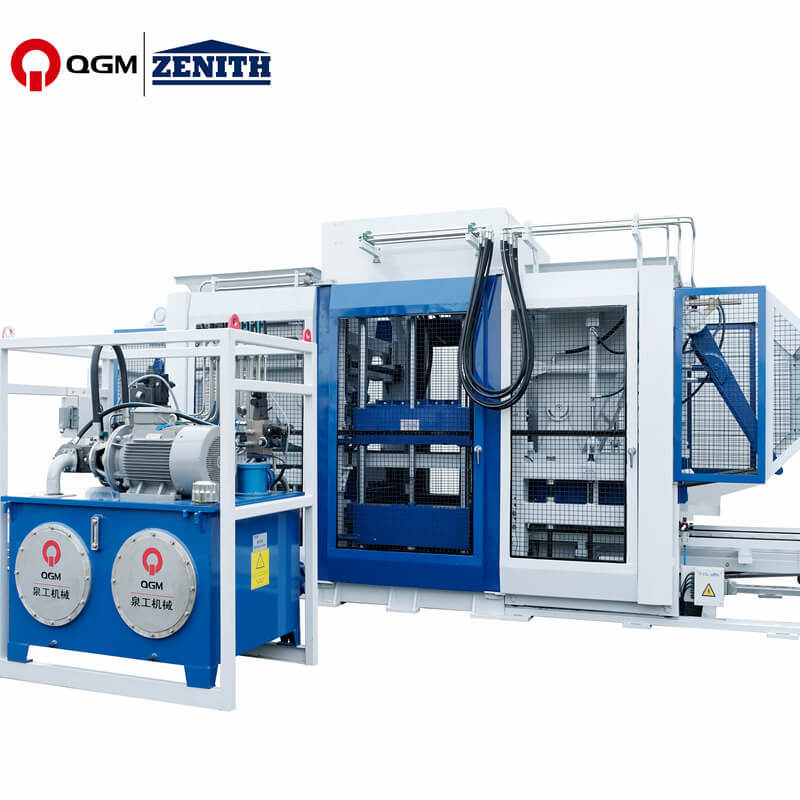

5)High-efficiency hydraulic system: with a high end hydraulic pump and hydraulic valve, the hydraulic operating speed, pressure and stroke can be adjusted based on different products for stable, high efficiency and energy saving operation.

6)Cloud-service platform: with the combination of cloud technology, general technology of data protocol, mobile internet technology, equipment modeling and big data statistics, the data collecting, on-line monitoring, remote system upgrading, remote equipment fault prediction and diagnosis and evaluation of equipment normal production condition can be implemented on the equipment purchased by customers from QGM.

Technical Data

Production Capacity

Block Type	Dimension (mm)	Pictures	Qty/Cycle	Production Capacity (Per 8hs)
Hollow Block	390*190*190		9	14,400-16,800 pcs
Rectangular Paver	200*100*60-80		36	52,800-61,600 pcs
Interlocks	225*112.5*60-80		25	42,000-49,000 pcs
Curstone	500*150*300		4	4,800-5,600 pcs
