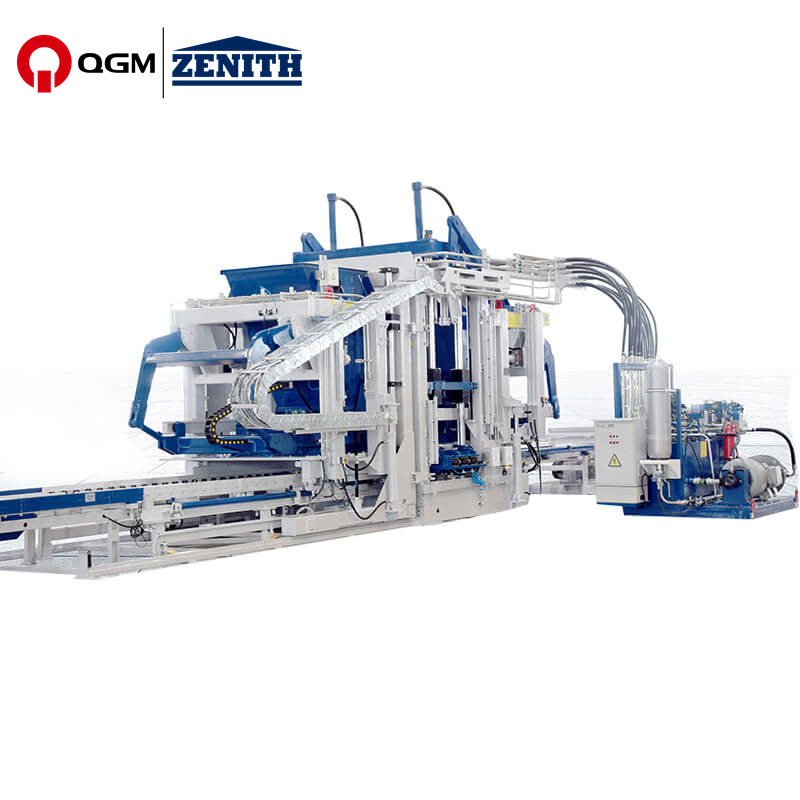

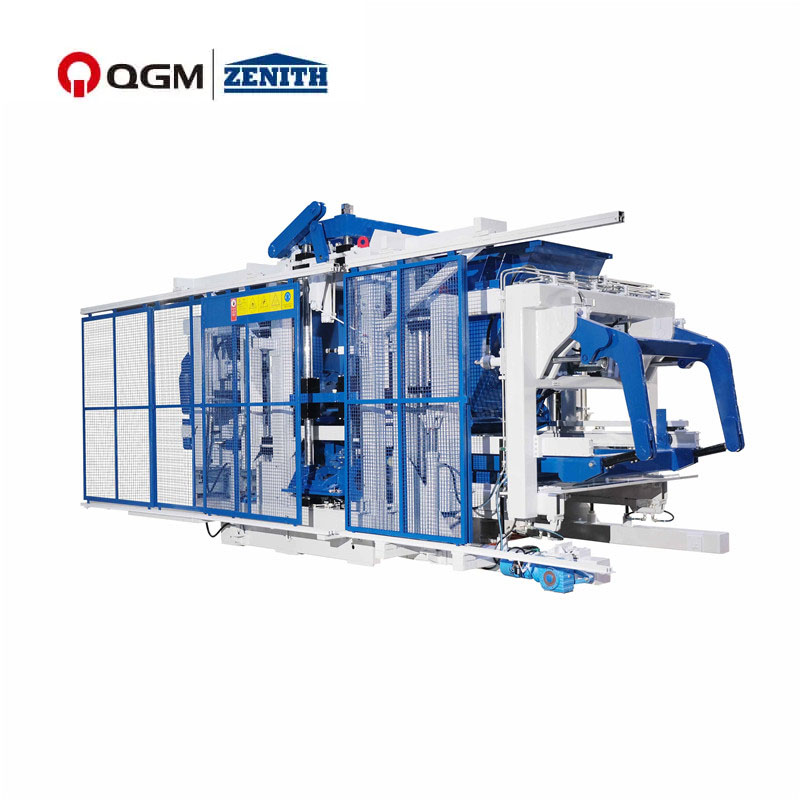

Automatic Cement Block Making Machine

Automatic Cement Block Making Machine is a highly automated equipment specially used for producing cement blocks and brick making equipment. It mainly uses mountain sand, river sand, sea sand, slag, slag, fly ash, stone powder, gravel, cement, construction waste, etc. as raw materials. After scientific proportioning, adding water and stirring, it produces cement standard blocks and hollow blocks through high-pressure vibration molding. It can also produce cement standard bricks, curbstones and colored pavement bricks. Automatic Cement Block Making Machine adopts hydraulic system control, PLC programmable controller centralized operation, and advanced distributor and vibration system to ensure the density and consistency of the product. These characteristics make the automatic cement block making machine an important brick making machinery and equipment in the production of modern building materials.

Product Video

Main Technology Features

Servo vibration system

The machine is equipped with the newly developed servovibration system, which has a dense and high-excitedvibration force, thus ensuring production in an efficientway, especially for large products and high-quality products, which need to be produced by pre-vibration andtransitional vibration, can achieve a really nice effect.

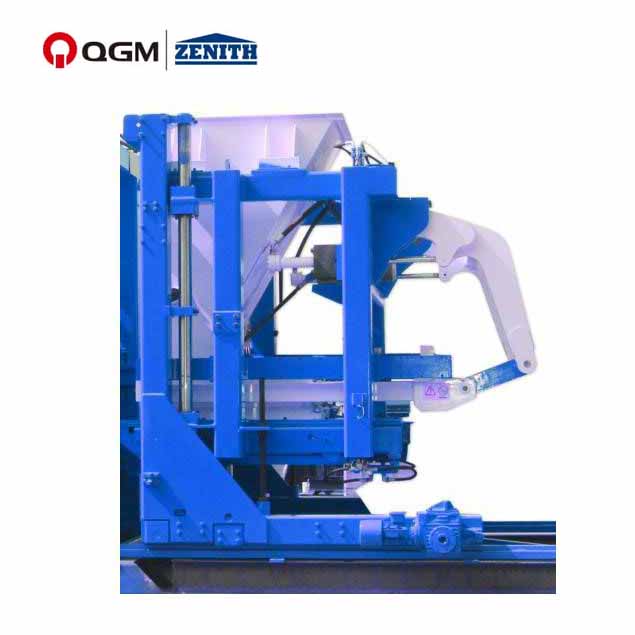

Compulsory feeding

The feeding system is applied with the Germany patenteddesign, which is suitable for the use of construction wasteand other special aggregates. wWhat's more, the discharging gate is controlled by sEw motor. The feedingframe, bottom plate & mixing blades are made of high-duty sweden HARDOx steel, which strengthen thesealing performance and prevent the material leakage toguarantee the long service life, feeding uniform for theimproved product quality.

SIEMENS frequency conversional control

SIEMENS Frequency conversional technology was re-innovated and improved by Germany R&D center. Themain machine vibration adopts low frequency standby,high frequency operation, which improve the runningspeed and product quality. At the same time, it reducesthe impact on the mechanical parts and the motor,prolongs the life of the machine and the motor, and savesabout 20%-30% of electricity compared with the traditional motor operation control.

Fully-automatic control

Perfectly combine the automation technology and systemfrom Germany.The automatic control is of easy operation,low failure ratio and high reliability.At the same time, ithas the functions of product formula management andoperation data collection.

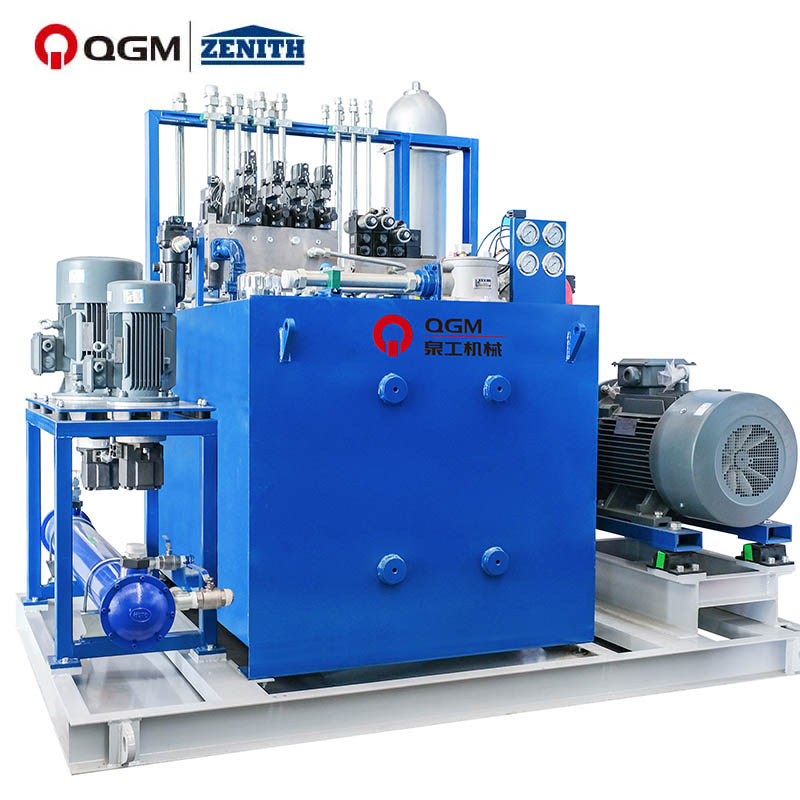

High-efficient hydraulic system

The hydraulic pump & valve are from international brand,which adopt high dynamic proportional valve and constantoutput pump to adjust the speed & pressure, with thefeatures of high-stability, high efficiency and energy-saving.

lntelligent Cloud System

QGM intelligent equipment cloud system realizes onlinemonitoring, remote upgrade, remote fault prediction andfault self-diagnosis, equipment health status evaluation;generates equipment operation and application statusreports and other functions; with the advantages ofremote control & operation, quick troubleshooting &maintenance for the clients. Everything is interconnected,and the production and operation of equipment can beseen through the network in every corner of the world.

Technical Data

Production Capacity

Block Type	Output	ZN900C Block Making Machine
240*115*53mm	Number of formed blocks(block/ mould)	50
	Cubic meter/ hour (m3/ hour)	13-18
	Cubic meter/ day (m3/ 8 hours)	1005-140
	Number of brick (blocks/ m3)	683
390*190*190mm	Number of formed blocks(block/ mould)	9
	Cubic meter/ hour (m3/ hour)	22.8-30.4
	Cubic meter/ day (m3/ 8 hours)	182.5-243.3
	Number of brick (blocks/ m3)	71
400*400*80mm	Number of formed blocks (block/ mould)	3
	Cubic meter/ hour (m3/ hour)	69.1-86.4
	Cubic meter/ day (m3/ 8 hours)	553-691.2
	Number of brick (blocks/ m3)	432-540
245*185*75mm	Number of formed blocks (block/ mould)	15
	Cubic meter/ hour (m3/ hour)	97.5-121.5
	Cubic meter/ day (m3/ 8 hours)	777.6-972
	Number of brick (blocks/m3)	2160-2700
250*250*60mm	Number of formed blocks(block/ mould)	8
	Cubic meter/ hour (m3/ hour)	72-90
	Cubic meter/ day (m3/ 8 hours)	576-720
	Number of brick (blocks/ m3)	1152-1440
225*112.5*60	Number of formed blocks(block/ mould)	25
	Cubic meter/ hour(m3/ hour)	91.1-113.9
	Cubic meter/ day(m3/ 8 hours)	728.9-911.2
	Number of brick (blocks/ m3)	3600-4500
200*100*60	Number of formed blocks(block/ mould)	36
	Cubic meter/ hour(m3/ hour)	103.7-129.6
	Cubic meter/ day(m3/ 8 hours)	829.4-1036.8
	Number of brick(blocks/ m3)	5184-6480
200*200*60	Number of formed blocks(block/ mould)	4
	Cubic meter/ hour (m3/ hour)	72-90
	Cubic meter/ day (m3/ 8 hours)	576-720
	Number of brick(blocks/ m3)	576-720
