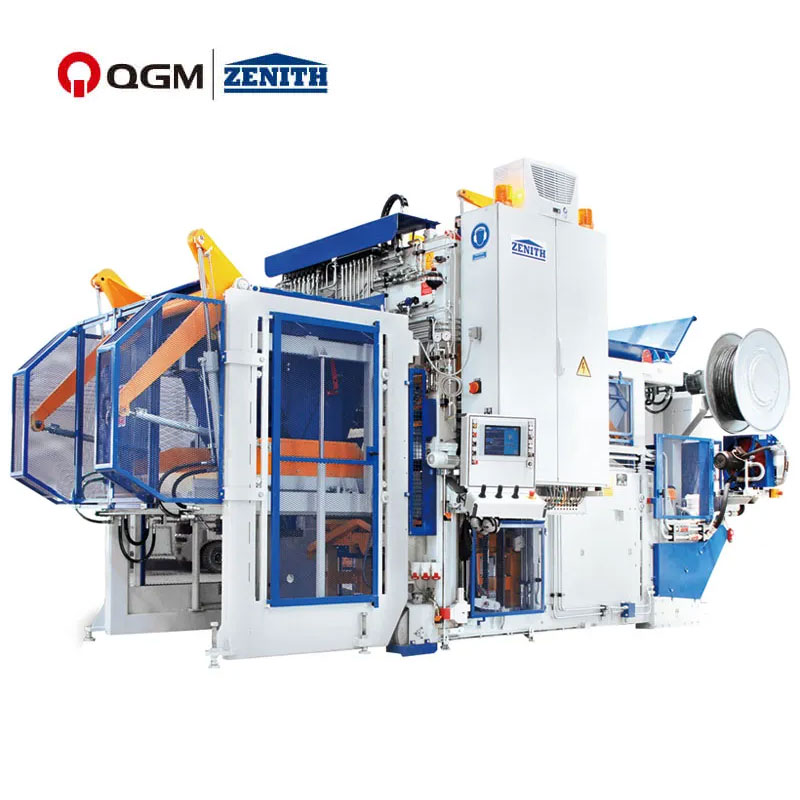

Pallet-Free Block Machine

As one of professional manufacturer, QGM/Zenith would like to provide you high quality Pallet-Free Block Machine. And we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

The Pallet-Free Block Machine is an advanced block production brick machine equipment, which features no need to use pallets or wooden pallets. It is controlled by hydraulic system and centrally operated by PLC programmable controller. The design advantage of this equipment is that it has a high degree of automation and can achieve multi-layer precise demoulding, thereby improving production efficiency. In this way, users can use the Pallet-Free Block Machine to manufacture high-quality, precise size and shape blocks.

The Pallet-Free Block Machine has many advantages. Compared with traditional block production equipment, it has a lower investment cost. There are no large quantities or large-scale production lines to install and maintain. This equipment has low power usage and relatively low maintenance costs. Another advantage is that the Pallet-Free Block Machine can run continuously and can produce a large number of blocks without waiting for pallets to be rearranged or replaced. The Pallet-Free Block Machine also meets the requirements of environmental protection and sustainable development, which can bring positive effects to the environment. Since there is no need to use traditional wooden pallets, the demand for forest resources is reduced. The garbage and pollutants generated by discarded pallets are reduced, and the burden on the environment is reduced. The application of the Pallet-Free Block Machine is very wide, and it can produce various types of blocks, concrete bricks, road bricks and other building materials. Users can customize models and molds according to their needs. Pallet-Free Block Machine is an efficient, energy-saving, environmentally friendly and economical "intelligent" block production equipment, and is one of the indispensable equipment in the modern construction industry.

Technical Data

Base material hopper	1,200L
Base material feedbox	2,000L
Pigment hopper	800L
Pigment feedbox	2,000L
Max.feeding height of loader	2,800mm
Forming size
Max forming length	1240mm
Max foming width(producing on the vibration table)	1.000mm
Max foming width(producing on the ground)	1,240mm
Product height
Multi-layer production
Min.product height(producing on the pallet)	50mm
Max. product height	250mm
Max stacking heightpallet height of one layer product)	640mm
Low level production on the pallet
Max product height	600mm
Low level production on the floor
Max.product height	650mm
Production on the floor
Max. product height	1.000mm
Min product height	250mm
Machine weight
Without mould and pigments device	11.7T
Pigment device	1.7T
Machine size
Total length(without pigment device)	4,400mm
Total length(with pigment device)	6,380mm
Max. total height	3,700mm
Min total heigh(ransport height)	3,240mm
Total widh(ncluding control panel)	2.540mm
Vibration system
Max. exciting force of the vibration fable	80KN
Min. excting force of the top vibration	40KN
Energy consumption
Based on the maximum number of vibrating table	42KW

Production Capacity

Block Type	Dimension (mm)	Pictures	aty/Cycle	Cycle Time	Production Capacity (Per 8hs)
Hollow Block	400200200		12	40s	8,640 pcs
Rectangular Paver	200* 100*60		54	38s	817m2
Rectangular Paver (without facemix)	20010060		54	36s	864m2
UNI Pavers	225112.560-80		40	38s	757m2
Curstone	1501000300		4	46s	2,504 pcs
