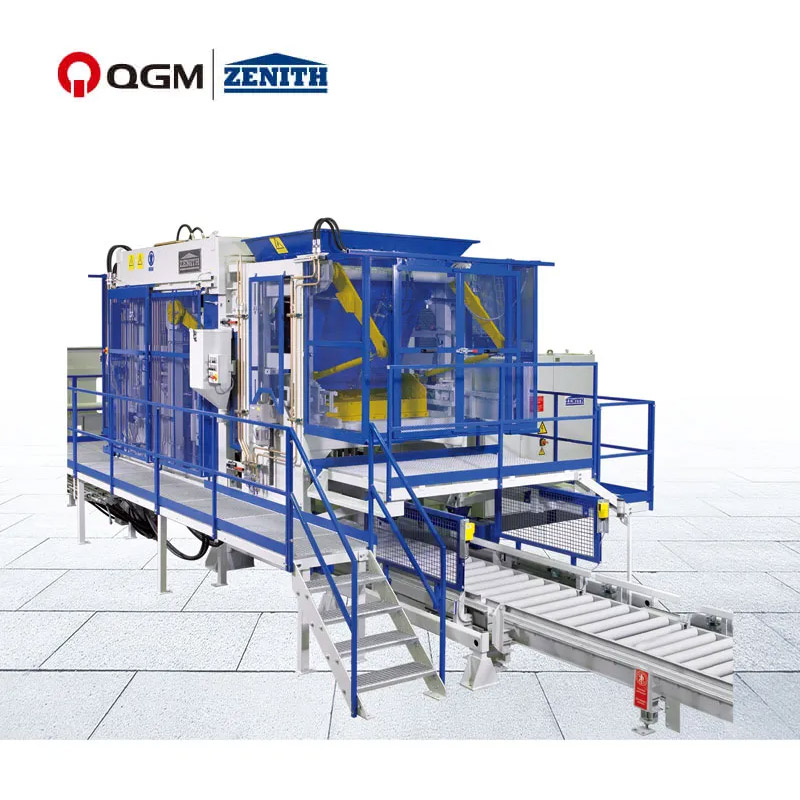

Block Making Machinery

Block Making Machinery refers to mechanical equipment used to make concrete blocks, which are usually used in construction. These machines are designed to produce blocks of various shapes and sizes according to the required applications. The main raw materials of Block Making Machinery include slag, slag, fly ash, stone powder, sand, gravel, cement, etc., and blocks or bricks are pressed out by high pressure through a hydraulic system. This equipment not only utilizes waste resources such as slag, slag, construction waste, etc., realizes the recycling of resources, but also protects land resources. Block Making Machinery usually consists of a series of components, including hoppers, agitators, molds, vibrators and conveyor belts. The working principle of block making machinery is to add an appropriate amount of water to the mixed material, put it into the mold, and vibrate the mixture through the vibrator to compact the blocks, and finally transport the finished blocks to the required place through the conveyor belt. This equipment can save the time and labor cost of manual production, improve production efficiency and product quality.

Technical Data
1）Block specifications and product height

2)Machine parameters

Production Capacity

Block Type	Dimension (mm)	Pictures	Qty/Cycle	Cycle Time	Production Capacity (Per 8hs)
Rectangular Paver	200* 100*60		54	28s	1,092m2
Rectangular Paver (without facemix)	200*100*60		54	25s	1,248m2
UNI Pavers	225*1125*60-80		40	28s	1.040m2
Curstone	150*1000*300		4	46s	2,496 pcs
