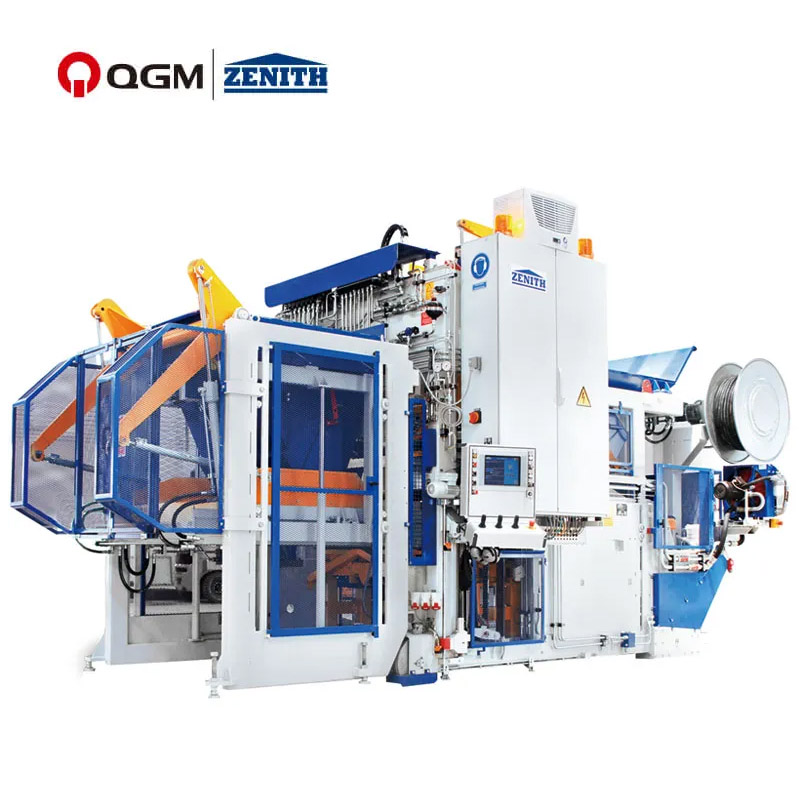

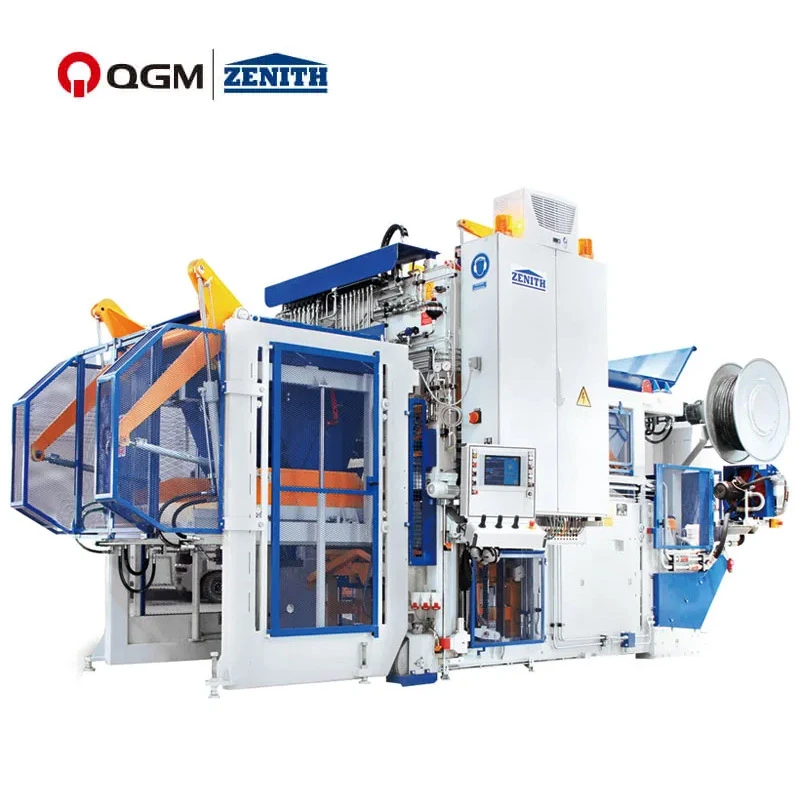

Block Machinery

Block Machinery is a brick machine for producing blocks. New wall materials are mainly blocks and cement bricks. Most of them adopt hydraulic forming mode, and some adopt vibration forming or chain lifting, that is, they are divided into two types of machines: mechanical and hydraulic. The cement bricks or hollow blocks produced do not need to be sintered, and can be shipped out of the factory after a short period of drying. The cement bricks or hollow blocks produced by Block Machinery effectively protect land resources and also realize the reuse of resources. For example, slag, slag, construction waste, etc., which are considered to be garbage, can be converted into unburned bricks through brick making equipment, thereby realizing the recycling of resources.

Block Machinery product advantages:

1. The operating system adopts Japanese Mitsubishi programmable controller PLC and human-machine interface touch screen control, equipped with data input device, safety logic control, and fault diagnosis system, which can realize ideal human-machine dialogue.

2. Perform manual, semi-automatic, and fully automatic mode operations. The parameters of each actuator can be set at will. The quality and efficiency of the product can be guaranteed.

3. It is manufactured using high-strength steel with special welding technology. It can ensure the machine body has good rigidity, heavy weight, and no resonance with the excitation system, which can extend the service life of the machine.

Technical Data

Production Capacity

Block Type	Dimension (mm)	Pictures	aty/Cycle	Cycle Time	Production Capacity (Per 8hs)
Hollow Block	400*200*200		12	40s	8,640 pcs
Rectangular Paver	200* 100*60		54	38s	817m2
Rectangular Paver (without facemix)	200*100*60		54	36s	864m2
UNI Pavers	225*112.5*60-80		40	38s	757m2
Curstone	150*1000*300		4	46s	2,504 pcs
