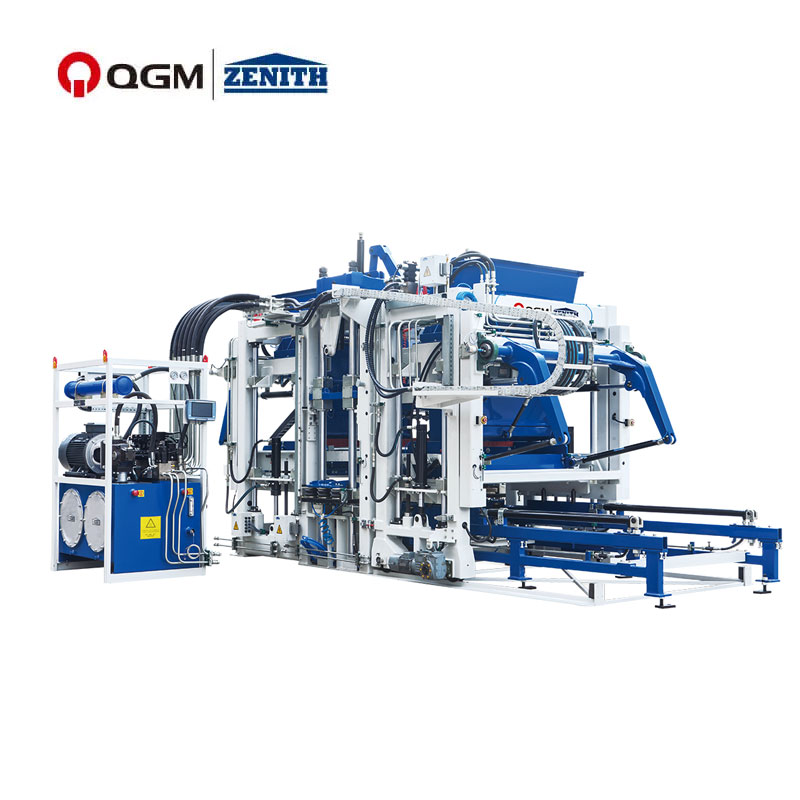

Block Machine Concrete

Block Machine Concrete is a mechanical equipment that uses fly ash, crushed construction waste, gravel, and stone powder as raw materials to produce new environmentally friendly materials such as blocks and cement bricks. It is a kind of mechanical equipment widely used in the construction industry. Its main feature is that it adopts automated production, which can quickly and efficiently produce high-quality and high-strength bricks, suitable for various construction projects. Block Machine Concrete first mixes the concrete evenly and then feeds it into the formwork, and then forms it by high-pressure vibration in the formwork. The whole process does not require human intervention, and the production of bricks can be completed automatically, which greatly improves production efficiency and reduces production costs. At the same time, the formwork structure used by Block Machine Concrete can be adjusted as needed to produce bricks that meet the requirements of different construction projects. Block Machine Concrete is easy to operate and easy to maintain, which can achieve lower production management costs. Block Machine Concrete can produce bricks of various specifications, colors, and shapes by adjusting different parameters. The produced bricks have good strength, wear resistance, durability and other characteristics, and are suitable for a wide range of applications in various construction projects.

Technical Parameters

Technology Advantage

Latest Servo Vibration Technology

The Block Machine Is Equipped With The Newly Developed Servo Vibration System, Which Can Ensure The Vibration Motors Are In A Synchronized State, Which Can Guarantee The Vertical Output Of Compaction Force. Also Avoid The Shear Stress Damage Of The Horizontal Compaction Force To The Machine And Prolong The Machine Lifespan. The Motor Speed Can Reach More Than 4000 Rpm, Which Can Provide Bigger Compaction Force & The Block Quality Would Be Greatly Improved.

Double Vibration System

Vibration Table Adopts High-Duty Sweden HARDOX Steel, Consisting Of Dynamic Table & Static Table, Which Can Greatly Improve The Vibration Efficiency. While There Are Another Two Vibrators On Top, To Increase Compaction & Guarantee The High Quality Of Concrete Blocks.

Automatic Mould Clamping System With Air Bags

There Are Air Bags On The Tamper Head & Two Side Of Machine. After The Mold Is Pushed Into Place, The Airbag Of The Tamper Head Is Inflated And Tightened Automatically. Finally, The Airbag Of The Mold Frame Is Inflated To Clamp The Mold Frame Automatically. In This Way, It Can Help To Save A Lot Of Time For Changing Different Moulds, Reduce The Vibration Noises & Also Increase Production Efficiency.

Germany SIEMENS Control System

QGM Control System Adopts SIEMENS PLC, Touch Screen, Contactors & Buttons Etc., Which Perfectly Combine The Automatic Technology And Advanced System From Germany. SIEMENS PLC Has Automatic Trouble-Shooting Function For Easy Maintenance & Also Automatic-Locking To Avoid Mechanical Accidents Caused By Operational Mistakes. While The SIEMENS Touch Screen Can Display Real-Time Production Status & Achieve Easy Operation By Visualization Representation. In Case Any Part Is Broken In The Future, The Replacement Part Can Be Sourced Locally, Which Can Save A Lot Of Time & Cost.

High-Efficient Hydraulic System

The Hydraulic Pump & Valve Are From International Brand, Which Adopt High Dynamic Proportional Valve And Constant Output Pump To Adjust The Speed & Pressure, With The Features Of High-Stability, High Efficiency And Energy-Saving.

Intelligent Cloud System

QGM Intelligent Equipment Cloud System Realizes Online Monitoring, Remote Upgrade, Remote Fault Prediction And Fault Self-Diagnosis, Equipment Health Status Evaluation; Generates Equipment Operation And Application Status Reports And Other Functions; With The Advantages Of Remote Control & Operation, Quick Troubleshooting & Maintenance For The Clients. Everything Is Interconnected, And The Production And Operation Of Equipment Can Be Seen Through The Network In Every Corner Of The World.

Corollary Equipment

Concrete Batching & Mixing Plant

Concrete Mixer-Planetary

Automatic Pallet Feeder

Off-Line Block Cubing System

SIEMENS Control System

Curing Chamber

Stacker/Simple Cuber

Elevator/Lowerator & Finger Car
