Intelligent Non Burning Brick Machine
  • Intelligent Non Burning Brick MachineIntelligent Non Burning Brick Machine

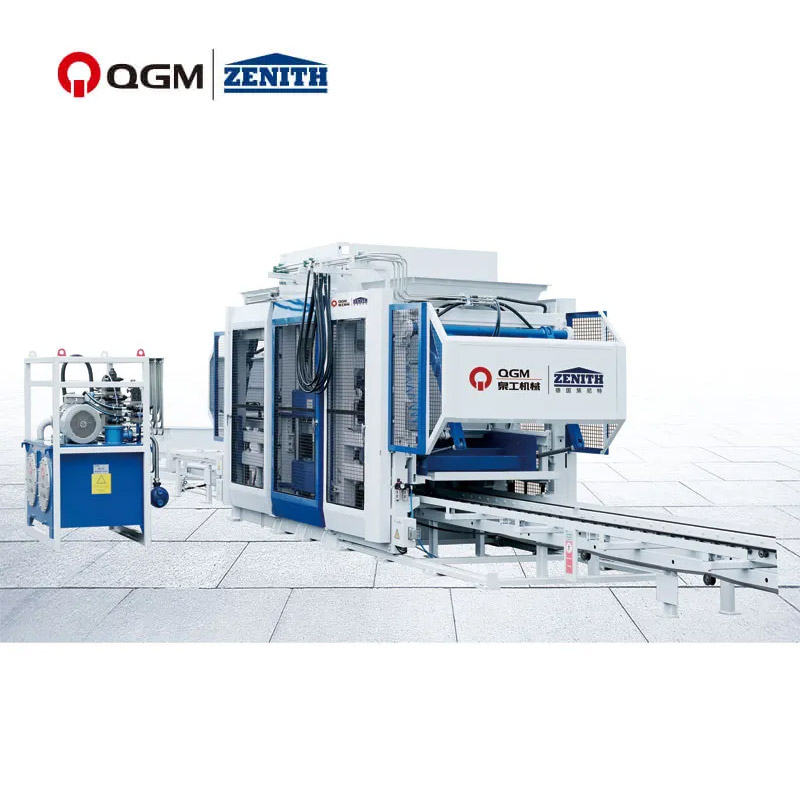

Intelligent Non Burning Brick Machine

Model:ZN1200S

As one of professional manufacturer, QGM/Zenith would like to provide you high quality Intelligent Non Burning Brick Machine. And we will offer you the best after-sale service and timely delivery.

Intelligent Non Burning Brick Machine is a brick machine production equipment. It is mainly controlled by computer programs, and combines electronic batching machine, mixer, conveyor and stacker to form a fully automatic equipment for producing pavement bricks, also known as non-burning brick machine. The pressed pavement brick blanks do not need to be sintered, and only need to be naturally dried and cured before use. Intelligent Non Burning Brick Machine is made of strong square steel welding, which is sturdy and vibration-resistant, and has excellent working stability. The mold box adopts four-column sliding, which is compact and the pressure head can slide and shift, which is convenient for mold box material distribution and greatly improves production efficiency. The mold box lifting part is installed with a limiter to prevent the mold from damaging the machine during operation. The four-column guide is used to make the four walls of the mold box evenly stressed. The pressed pavement brick blocks are dense and strong, and the edges and corners are neat and beautiful. The hydraulic components are imported brands with stable and durable quality. Intelligent non-burning brick machine can produce products with solid waste such as construction waste, industrial solid waste, tailings residue as raw materials, and produce high-quality ecological brick products, such as ecological permeable bricks, ecological hydraulic bricks, ecological slope protection bricks, etc. At the same time, it can also produce high-end building materials such as artificial stone, curbstone, terrazzo, etc. This process can also effectively increase the proportion of solid waste aggregate blending (40%-75%), realizing the recycling of solid waste resources.

Intelligent Non Burning Brick Machine combines the advantages of environmental protection, high efficiency, standardization, and low cost. In terms of environmental protection, it adopts high-pressure pressing technology, which does not require the burning of fuel, effectively reduces pollutant emissions, reduces energy consumption, and saves energy and protects the environment. In terms of high efficiency, the equipment operates continuously, the pressing speed is fast, the output is high, and the production efficiency is greatly improved, and the construction period is shortened.


Technical Data

Pallet Size 1,200*1,150mm
Forming Area 1,100*1,080mm
Height of Finished Products 50-300mm
Cycle Time 15-25s(as per mould)
Vibration Force 120KN
Bottom Vibration 2*15KW(SIEMENS)
Top Vibration 2*0.55KW
Power 70. 35KW
Total Weight Main Machine:14 98T
With facemix device:18.49T


Production Capacity

Block Type Dimension (mm) Pictures Qty/Cycle Production Capacity (Per 8hs)
Hollow Block 390*190*190 12 14,400-16 ,800 pcs
Rectangular Paver 200*100*60-80 36 1,000-1,200m2
Interlocks 225*112.5*60- -80 32 35,200-38,400pcs
Curstone 500*150*300 4 4,400-5,600 pcs
