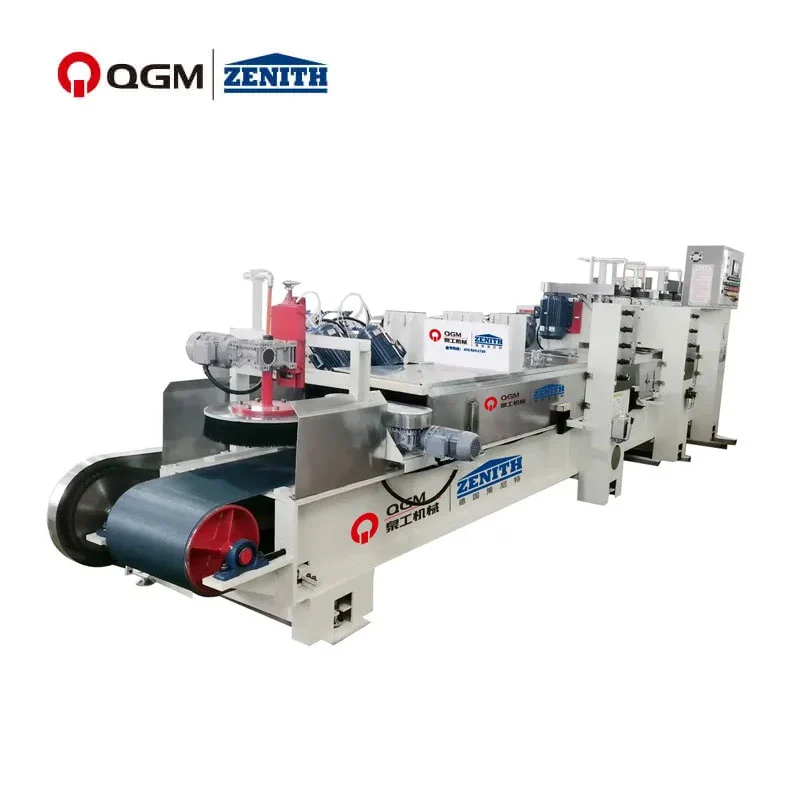

Kerbstone Brick Machine
  • Kerbstone Brick MachineKerbstone Brick Machine

Kerbstone Brick Machine

QGM/Zenith, a reputable manufacturer in China, is willing to offer you Kerbstone Brick Machine. We promise to provide you with the best after-sale support and prompt delivery.

Kerbstone Brick Machine is a brick machine specially used for producing building materials such as curbstones, kerbstones, kerbstone bricks, slope protection bricks, special-shaped bricks, etc. It uses hydraulic power to press and form, using sand, gravel, industrial waste slag, slag, slag and other materials, adding a small amount of cement, and by changing the mold, it can make different types of curbstone products. The curbstone brick machine can make other special-shaped bricks, such as lawn bricks, slope protection bricks, etc., which are widely used in highways, municipalities, community construction, community greening and other fields, used to protect highway curbstones, beautify municipally planned pedestrian streets, and household bricks, etc. The design and manufacture of the curbstone brick machine takes into account production efficiency and quality, and ensures the uniformity and durability of the product through automation and precise pressing technology. Kerbstone Brick Machine can make different types of bricks by changing the mold to meet different usage needs.


Curbstone polishing machine technical parameters list configuration
Name Model Specifications (length*width) Components Quantity Speed Power
Name Power
Back thickness machine CX20-50 type 2 grinding head 3260*1500 Flat belt motor 1.5KW 1 0-1800mm/min 32.24KW
Grinding head motor 15KW 2 1400r/min
Grinding head lifting bipolar motor 0.37KW 2 1400r/min
Pneumatic automatic flip machine CX20-50 type 2907*2100 Flip motor 0.37KW 2 1400r/min 0.74KW
Front thickness grinding machine CX20-50 type 6 grinding heads 7160*1500 Surface grinding disc motor 15KW 2 1400r/min 51.94KW
Surface grinding disc lifting motor 0.37KW 2 1400r/min
Side grinding disc motor 5.5KW 2 1400r/min
Chamfering grinding motor 4KW 2 1400r/min
Flat belt motor 2.2KW 1 0-1800mm/min
Pneumatic polishing machine CX20-50 type 9 polishing head 8160*1500 Flat polishing disc motor 5.5KW 4 960r/min 37.32KW
Side polishing disc motor 3KW 3 1400r/min
Chamfering motor 1.5KW 2 1400r/min
Flat belt motor 2.2KW 1 0-1800mm/min
Side belt motor 0.37KW 1 1400r/min
Cleaning brush motor 0.75KW 1 1400r/min
Total 122.24KW
Maximum grinding specification Width 450mm*Height 200mm
Minimum grinding specifications Width 150mm*Height 100mm
Output 660 meters per shift in 10 hours
Water consumption 50 tons of circulating water per hour
Stainless steel plate for the side cover and motor cover of the whole set of equipment
Product name and specifications Unit Quantity (unit)
1.CX20-50 type curbstone thickness determination, plate turning, grinding, polishing combination machine Set 1
One set includes the following products:
CX20-50 type 2 grinding head back thickness machine unit 1
CX20-50 type pneumatic automatic flip machine unit 1
CX20-50 type 6 grinding head front thickness flat grinding side grinding chamfering grinding polishing machine Unit 1
CX20-50 9-head front and side chamfering pneumatic polishing machine Unit 1
