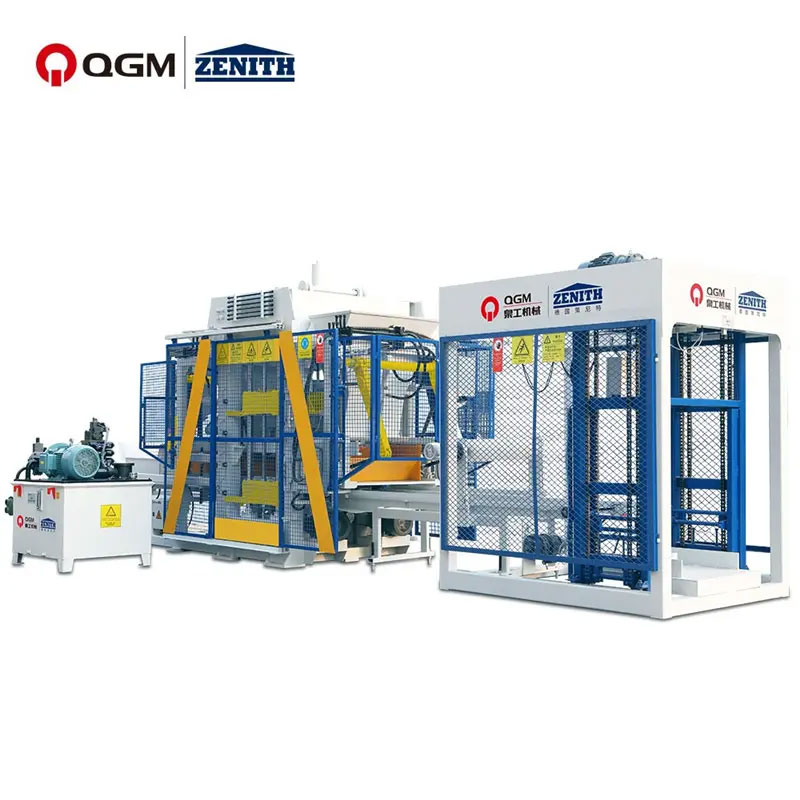

Automatic Block Making Machine

Automatic Block Making Machine is a machine mainly used to produce new wall material blocks, which is one of the brick making equipment. The products produced by Automatic Block Making Machine can be processed into various new wall materials using industrial waste materials such as sand, stone, fly ash, coal slag, coal gangue, tailings slag, ceramsite, perlite, etc. Automatic Block Making Machine adopts a fully automatic PLC control system with an interactive human-machine interface. The control system is configured with safe logic control and has production program and fault diagnosis display functions. It improves production efficiency and reduces the need for manual intervention, making the entire production process more intelligent and automated. By replacing different molds, the Automatic Block Making Machine can produce wall blocks of different specifications and shapes, including but not limited to porous bricks, hollow blocks, curbstones, pavement bricks, grass bricks, checkerboard bricks and other cement products.

Product Video

Main Technology Features

1. Adopts the most advanced frequency conversional control system from German SIEMENS, plus with the Siemens Touch Screen

A. Visualization screen with easy operation;

B. Able to set up, update and amend the production perimeters, to maximize the production output;

C. Dynamic display of the system’s status, automatic troubleshooting, and warning notice;

D. Automatic locking can prevent the production line from mechanical accidents caused by operation mistakes;

E. Troubleshooting via the teleservice.

2. Hydraulic pumps and valves from international brands are used.

High dynamic proportional valves and a constant output pump are adopted, so as to have a precise adjustment to the oil flow and pressure, which can provide the client with a stronger quality block, more efficient and energy-saving production.

3. Multi-shaft rotating in 360°and compulsory feeding design are used, greatly improving the density and intensity for the blocks while shortening the time for material feeding.

4. Integrated design on the vibration table not only can reduce the machine weight but also it can improve the vibration efficiently.

5. By adopting the double-line aero vibration-proof system, it can reduce the vibrating force on the mechanical parts, prolonging the machine's lifetime and reducing the noise.

6. High-precision guide bearings are used to assure the precise movement between the tamper head and the mold;

7. High-intensity steel and heat treatment are used for the machine frame, which allows the machine to have a better performance on wear-resistant.

Technical Data

Production Capacity

Block Type	Dimension (mm)	Pictures	Qty/Cycle	Production Capacity (Per 8hs)
Hollow Block	400*200*200		6	6,600-8,400
Rectangular Paver	200*100*60		21	23,000-29,400
Paver	225*112.5*60		15	16,500-21,000
Curstone	500*150*300		2	2,200-2,800
