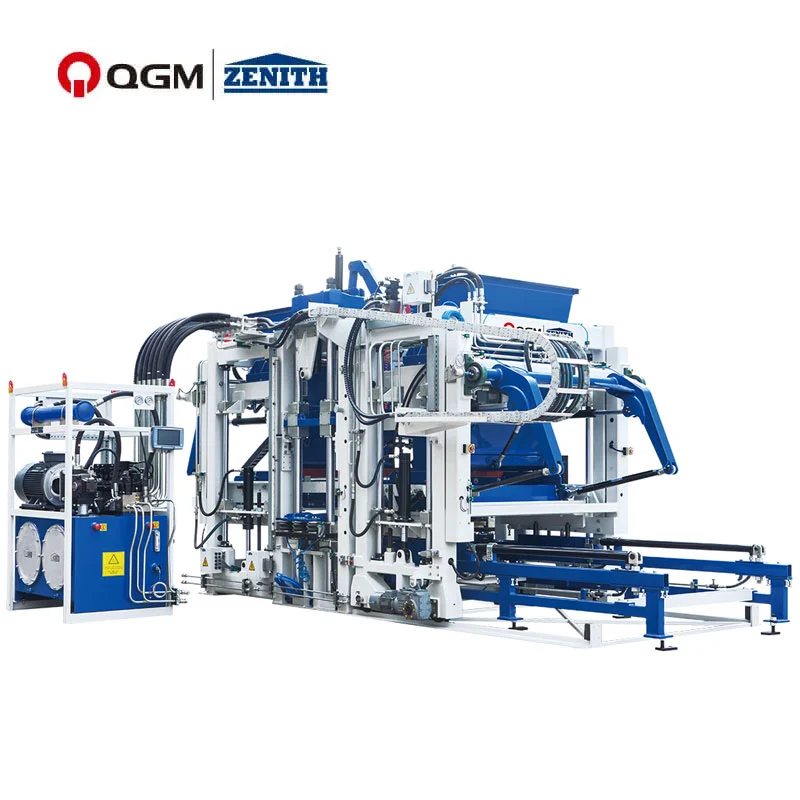

Hollow Block Machinery

Hollow Block Machinery is a brick machine machinery equipment specially used for producing hollow blocks, hollow bricks, multi-row hole bricks and other products for construction. Hollow Block Machine is also called cement block machine, unburned brick machine, hydraulic brick machine, block forming machine. Hollow Block Machine uses fly ash, stone powder, river sand and other materials, plus a small amount of cement, to produce hollow bricks through a specific process. These hollow bricks are new wall materials with environmental protection and economic characteristics. At the same time, the unburned bricks produced by the hollow block machine have high density and high strength. The hollow brick machine is easy to operate and has high productivity.
Hollow Block Machine product advantages are as follows:
1. Application scope: It is suitable for filling frame buildings, building buildings, factories and other fences. Hollow bricks have light weight and hollow structure with certain energy-saving effects. They are promoted and used bricks advocated by the country for energy conservation and emission reduction.
2. Structure and function: The main structure of the hollow block machine includes the feeding mechanism, frame, silo, pressure head, plate supply mechanism, lifting workbench and control cabinet. These parts work together to ensure the stable operation and efficient production of the equipment.
3. Technical features: Made of high-strength steel and special welding technology to ensure the rigidity and durability of the machine; hydraulic vibration is used to shape the raw materials to produce high-quality hollow blocks; the unique mold design can produce different types of bricks to meet the needs of different regions and customers.

Technical Parameters

Technology Advantage

Latest Servo Vibration Technology

The Block Machine Is Equipped With The Newly Developed Servo Vibration System, Which Can Ensure The Vibration Motors Are In A Synchronized State, Which Can Guarantee The Vertical Output Of Compaction Force. Also Avoid The Shear Stress Damage Of The Horizontal Compaction Force To The Machine And Prolong The Machine Lifespan. The Motor Speed Can Reach More Than 4000 Rpm, Which Can Provide Bigger Compaction Force & The Block Quality Would Be Greatly Improved.

Double Vibration System

Vibration Table Adopts High-Duty Sweden HARDOX Steel, Consisting Of Dynamic Table & Static Table, Which Can Greatly Improve The Vibration Efficiency. While There Are Another Two Vibrators On Top, To Increase Compaction & Guarantee The High Quality Of Concrete Blocks.

Automatic Mould Clamping System With Air Bags

There Are Air Bags On The Tamper Head & Two Side Of Machine. After The Mold Is Pushed Into Place, The Airbag Of The Tamper Head Is Inflated And Tightened Automatically. Finally, The Airbag Of The Mold Frame Is Inflated To Clamp The Mold Frame Automatically. In This Way, It Can Help To Save A Lot Of Time For Changing Different Moulds, Reduce The Vibration Noises & Also Increase Production Efficiency.

Germany SIEMENS Control System

QGM Control System Adopts SIEMENS PLC, Touch Screen, Contactors & Buttons Etc., Which Perfectly Combine The Automatic Technology And Advanced System From Germany. SIEMENS PLC Has Automatic Trouble-Shooting Function For Easy Maintenance & Also Automatic-Locking To Avoid Mechanical Accidents Caused By Operational Mistakes. While The SIEMENS Touch Screen Can Display Real-Time Production Status & Achieve Easy Operation By Visualization Representation. In Case Any Part Is Broken In The Future, The Replacement Part Can Be Sourced Locally, Which Can Save A Lot Of Time & Cost.

High-Efficient Hydraulic System

The Hydraulic Pump & Valve Are From International Brand, Which Adopt High Dynamic Proportional Valve And Constant Output Pump To Adjust The Speed & Pressure, With The Features Of High-Stability, High Efficiency And Energy-Saving.

Intelligent Cloud System

QGM Intelligent Equipment Cloud System Realizes Online Monitoring, Remote Upgrade, Remote Fault Prediction And Fault Self-Diagnosis, Equipment Health Status Evaluation; Generates Equipment Operation And Application Status Reports And Other Functions; With The Advantages Of Remote Control & Operation, Quick Troubleshooting & Maintenance For The Clients. Everything Is Interconnected, And The Production And Operation Of Equipment Can Be Seen Through The Network In Every Corner Of The World.

Corollary Equipment

Concrete Batching & Mixing Plant

Concrete Mixer-Planetary

Automatic Pallet Feeder

Off-Line Block Cubing System

SIEMENS Control System

Curing Chamber

Stacker/Simple Cuber

Elevator/Lowerator & Finger Car
