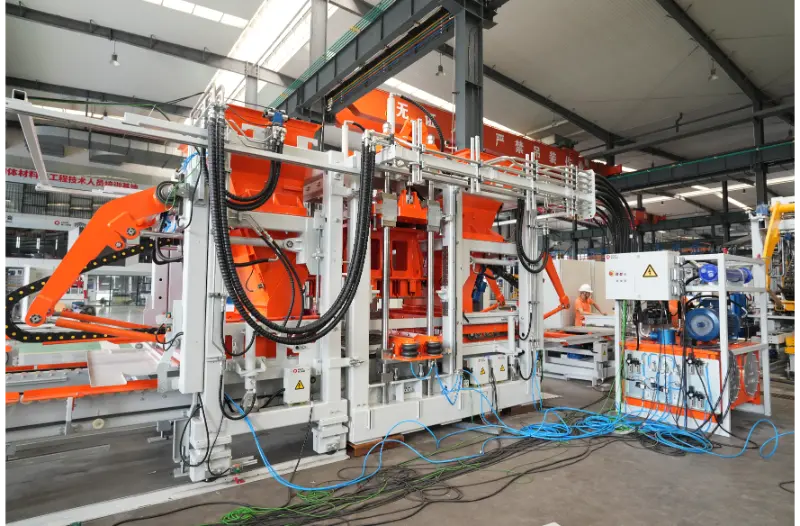

Concrete Block Making Machine

Concrete Block Making Machine is a kind of equipment specially used for producing block bricks. It is a professional equipment for producing new wall materials - block bricks. Concrete Block Making Machine uses cement, sand, pebbles (or crushed cliff stones, pebbles or coal slag, slag) as raw materials. The block bricks produced have the advantages of high hollow rate, good quality, low cost, and not easy to weather. At the same time, the concrete block machine adopts closed belt conveyor, strictly controls the amount of small materials and semi-storage, so that it can be used as soon as it is delivered, prevents the concrete from being affected by aftershocks and liquefies in advance, and ensures the strength of the product. The unique unloading and arch breaking device allows the material to be quickly and evenly fed into the mold box; the special double-end synthetic output vibration technology and reasonable vibrator arrangement make the exciting force evenly distributed in the vibration table. Thereby ensuring the consistency of product weight and strength. The overall structure of the block machine is compact, the equipment is reasonable, and the rotating part adopts mechanized devices, which are accurate and reliable. Reduce labor intensity and improve production efficiency. Pressurize up and down, directional vibration, and frequency conversion brake to achieve high-density and high-strength molding effects. One machine has multiple uses. It can produce block products of different shapes and specifications by using different molds. Concrete Block Making Machine is also divided into automatic concrete block making machine and intelligent concrete block making machine. For example, the fully automatic concrete block making machine adopts PLC intelligent control, supports manual and automatic operation, and can realize human-machine dialogue according to the density and strength of different materials. It is a set of advanced production equipment integrating mechanical, electronic and hydraulic technologies.

Technical Parameters

Technology Advantage

SIEMENS Frequency Vibration Technology

QGM SIEMENS Frequency Conversional Technology Was Re-Innovated And Improved By Germany R&D Center. The Block Making Vibration Adopts Low Frequency Standby, High Frequency Operation, Which Improve The Running Speed And Product Quality. At The Same Time, It Reduces The Impact On The Mechanical Parts And Motor, Prolongs The Machine And Motor Lifespan, Saving About 20%-30% Of Electricity When Compared With The Traditional Motor.

Double Vibration System

Vibration Table Adopts High-Duty Sweden HARDOX Steel, Consisting Of Dynamic Table & Static Table, Which Can Greatly Improve The Vibration Efficiency. While There Are Another Two Vibrators On Top, To Increase Compaction & Guarantee The High Quality Of Concrete Blocks.

SIEMENS Intelligent Control System

QGM Control System Adopts SIEMENS PLC, Touch Screen, Contactors & Buttons Etc., Which Perfectly Combine The Automatic Technology And Advanced System From Germany. SIEMENS PLC Has Automatic Trouble-Shooting Function For Easy Maintenance & Also Automatic-Locking To Avoid Mechanical Accidents Caused By Operational Mistakes. While The SIEMENS Touch Screen Can Display Real-Time Production Status & Achieve Easy Operation By Visualization Representation. In Case Any Part Is Broken In The Future, The Replacement Part Can Be Sourced Locally, Which Can Save A Lot Of Time & Cost.

High-Efficient Hydraulic System

The Hydraulic Pump & Valve Are From International Brand, Which Adopt High Dynamic Proportional Valve And Constant Output Pump To Adjust The Speed & Pressure, With The Features Of High-Stability, High Efficiency And Energy-Saving.

Intelligent Cloud System

QGM Intelligent Equipment Cloud System Realizes Online Monitoring, Remote Upgrade, Remote Fault Prediction And Fault Self-Diagnosis, Equipment Health Status Evaluation; Generates Equipment Operation And Application Status Reports And Other Functions; With The Advantages Of Remote Control & Operation, Quick Troubleshooting & Maintenance For The Clients. Everything Is Interconnected, And The Production And Operation Of Equipment Can Be Seen Through The Network In Every Corner Of The World.

Corollary Equipment

Batcher

Automatic Pallet Feeder

Moisture Sensor

Finger Car

Block-Pallet Separator

Curing Chamber

Block-Pushing Cuber
